android 屬性動畫入門

前面關於tween動畫寫了2篇博客,如果那2篇博客都看懂了,估計Tween動畫理解使用起來問題就不大,之前也說了Tween動畫的缺點就是在交互上有bug,今天就講下屬性動畫,屬性動畫就能解決Tween動畫交互上的問題,由於下周工作上很忙,估計要花一周時間把這篇博客寫完,一些常見的動畫demo,都在寫出來,希望每個人都能看的懂,切入正題,

屬性動畫英文叫Property Animator,它包括ValueAnimator和ObjectAnimator,我們先看ValueAnimator這個類,從類名字直觀的就是叫值動畫,對吧,那麼這和Tween動畫不同的是Tween動畫是叫view animation,作用於控件上的,如果看過ValueAnimator類的源碼就知道它是繼承了Animator這個類,現在看下Animator類的源碼,看看它給我們提供了什麼方法讓我們去調用,這個類的源碼是我把注釋刪除了,代碼量很少,才200多行

package android.animation;
import android.content.res.ConstantState;
import java.util.ArrayList;
public abstract class Animator implements Cloneable {
/**
* The set of listeners to be sent events through the life of an animation.
*/
ArrayList mListeners = null;
/**
* The set of listeners to be sent pause/resume events through the life
* of an animation.
*/
ArrayList mPauseListeners = null;
/**
* Whether this animator is currently in a paused state.
*/
boolean mPaused = false;

int mChangingConfigurations = 0;
private AnimatorConstantState mConstantState;
public void start() {
}
public void cancel() {
}

public void end() {
}
public void pause() {
if (isStarted() && !mPaused) {
mPaused = true;
if (mPauseListeners != null) {
ArrayList tmpListeners =
(ArrayList) mPauseListeners.clone();
int numListeners = tmpListeners.size();
for (int i = 0; i < numListeners; ++i) {
tmpListeners.get(i).onAnimationPause(this);
}
}
}
}
public void resume() {
if (mPaused) {
mPaused = false;
if (mPauseListeners != null) {
ArrayList tmpListeners =
(ArrayList) mPauseListeners.clone();
int numListeners = tmpListeners.size();
for (int i = 0; i < numListeners; ++i) {
tmpListeners.get(i).onAnimationResume(this);
}
}
}
}
public boolean isPaused() {
return mPaused;
}
public abstract long getStartDelay();
public abstract void setStartDelay(long startDelay);
public abstract Animator setDuration(long duration);
public abstract long getDuration();
public abstract void setInterpolator(TimeInterpolator value);
public TimeInterpolator getInterpolator() {
return null;
}
public abstract boolean isRunning();
public boolean isStarted() {
// Default method returns value for isRunning(). Subclasses should override to return a
// real value.
return isRunning();
}
public void addListener(AnimatorListener listener) {
if (mListeners == null) {
mListeners = new ArrayList();
}
mListeners.add(listener);
}
public void removeListener(AnimatorListener listener) {
if (mListeners == null) {
return;
}
mListeners.remove(listener);
if (mListeners.size() == 0) {
mListeners = null;
}
}
public ArrayList getListeners() {
return mListeners;
}
public void addPauseListener(AnimatorPauseListener listener) {
if (mPauseListeners == null) {
mPauseListeners = new ArrayList();
}
mPauseListeners.add(listener);
}
public void removePauseListener(AnimatorPauseListener listener) {
if (mPauseListeners == null) {
return;
}
mPauseListeners.remove(listener);
if (mPauseListeners.size() == 0) {
mPauseListeners = null;
}
}
public void removeAllListeners() {
if (mListeners != null) {
mListeners.clear();
mListeners = null;
}
if (mPauseListeners != null) {
mPauseListeners.clear();
mPauseListeners = null;
}
}

public int getChangingConfigurations() {
return mChangingConfigurations;
}
public void setChangingConfigurations(int configs) {
mChangingConfigurations = configs;
}
public void appendChangingConfigurations(int configs) {
mChangingConfigurations |= configs;
}
public ConstantState createConstantState() {
return new AnimatorConstantState(this);
}
@Override
public Animator clone() {
try {
final Animator anim = (Animator) super.clone();
if (mListeners != null) {
anim.mListeners = new ArrayList(mListeners);
}
if (mPauseListeners != null) {
anim.mPauseListeners = new ArrayList(mPauseListeners);
}
return anim;
} catch (CloneNotSupportedException e) {
throw new AssertionError();
}
}
public void setupStartValues() {
}
public void setupEndValues() {
}


public void setTarget(Object target) {
}

public boolean canReverse() {
return false;
}
/**
* @hide
*/
public void reverse() {
throw new IllegalStateException("Reverse is not supported");
}
public static interface AnimatorListener {
void onAnimationStart(Animator animation);
void onAnimationEnd(Animator animation);
void onAnimationCancel(Animator animation);
void onAnimationRepeat(Animator animation);
}

public static interface AnimatorPauseListener {
void onAnimationPause(Animator animation);
void onAnimationResume(Animator animation);
}
public void setAllowRunningAsynchronously(boolean mayRunAsync) {
// It is up to subclasses to support this, if they can.
}
private static class AnimatorConstantState extends ConstantState {
final Animator mAnimator;
int mChangingConf;
public AnimatorConstantState(Animator animator) {
mAnimator = animator;
// ensure a reference back to here so that constante state is not gc'ed.
mAnimator.mConstantState = this;
mChangingConf = mAnimator.getChangingConfigurations();
}
@Override
public int getChangingConfigurations() {
return mChangingConf;
}
@Override
public Animator newInstance() {
final Animator clone = mAnimator.clone();
clone.mConstantState = this;
return clone;
}
}
}

通過看它的源碼發現Animator是一個抽象類,既然它是抽象類,那麼一定存在抽象的方法,現在就把幾個抽象方法提出來

public abstract void setStartDelay(long startDelay); 這是延遲幾秒開始執行動畫

public abstract long getStartDelay();獲取動畫延遲執行的時間,單位為毫秒

public abstract Animator setDuration(long duration); 設置動畫執行的時間 單位為毫秒

public abstract long getDuration();獲取動畫執行的時間

public abstract void setInterpolator(TimeInterpolator value);設置動畫插值器

public abstract boolean isRunning();動畫是否在執行

下面是非抽象函數並且是空實現的

public void start() {} 動畫開始

public void cancel() {}取消執行動畫

public void end() {}結束動畫執行

public void setTarget(Object target) {}設置動畫的標記

下面是非空實現方法：

public void pause() {}動畫暫停的方法

public void resume() {}動畫重新執行

public boolean isPaused() {}動畫是否暫停了,默認返回值為false

public TimeInterpolator getInterpolator() {} 返回動畫插值器對象,默認返回為null

public boolean isStarted() {} 動畫是否執行了,默認返回值是調用了isRunning()方法,而這個方法又是抽象的,需要子類去實現,

public void addListener(AnimatorListener listener) {
    if (mListeners == null) {
        mListeners = new ArrayList();
    }
    mListeners.add(listener);
}

這是添加動畫監聽的方法,它是用一個List集合去維護了所添加的監聽器,而AnimatorListener是一個接口,如下：

public static interface AnimatorListener {
    /**
     *
Notifies the start of the animation.

* * @param animation The started animation. */ void onAnimationStart(Animator animation); /** *
Notifies the end of the animation. This callback is not invoked * for animations with repeat count set to INFINITE.

* * @param animation The animation which reached its end. */ void onAnimationEnd(Animator animation); /** *
Notifies the cancellation of the animation. This callback is not invoked * for animations with repeat count set to INFINITE.

* * @param animation The animation which was canceled. */ void onAnimationCancel(Animator animation); /** *
Notifies the repetition of the animation.

* * @param animation The animation which was repeated. */ void onAnimationRepeat(Animator animation); }

這個接口分別定義了四個方法依次是動畫開始,結束,取消,重復等回調接口,

public void removeListener(AnimatorListener listener) {
    if (mListeners == null) {
        return;
    }
    mListeners.remove(listener);
    if (mListeners.size() == 0) {
        mListeners = null;
    }
}

這個是移除一個動畫監聽,

public ArrayList getListeners() {
    return mListeners;
}

這是獲取所有監聽動畫

public void addPauseListener(AnimatorPauseListener listener) {
    if (mPauseListeners == null) {
        mPauseListeners = new ArrayList();
    }
    mPauseListeners.add(listener);
}

這是添加一個暫停動畫監聽的方法,而AnimatorPauseListener是一個接口

public static interface AnimatorPauseListener {
    /**
     *
Notifies that the animation was paused.

* * @param animation The animaton being paused. * @see #pause() */ void onAnimationPause(Animator animation); /** *
Notifies that the animation was resumed, after being * previously paused.

* * @param animation The animation being resumed. * @see #resume() */ void onAnimationResume(Animator animation); } 分別定義了動畫暫停和重新執行的回調方法
public void removePauseListener(AnimatorPauseListener listener) {
    if (mPauseListeners == null) {
        return;
    }
    mPauseListeners.remove(listener);
    if (mPauseListeners.size() == 0) {
        mPauseListeners = null;
    }
}

這是移除一個暫停動畫的監聽

public void removeAllListeners() {
    if (mListeners != null) {
        mListeners.clear();
        mListeners = null;
    }
    if (mPauseListeners != null) {
        mPauseListeners.clear();
        mPauseListeners = null;
    }
}

這是移除所有動畫的監聽,包括動畫開始和結束的監聽和暫停的監聽



下面就開始講ValueAnimator類的一些使用了,

public class MainActivity extends Activity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        ValueAnimator animator = ValueAnimator.ofInt(0,100);
        animator.setDuration(1000);
        animator.start();
    }
}

這是一個平移動畫,但我並沒有把這個動畫作用於某一個控件上,那這個動畫到底有沒有執行呢?我們知道動畫都有監聽的方法,





animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
    @Override
    public void onAnimationUpdate(ValueAnimator animation) {
        int curValue = (int)animation.getAnimatedValue();
        Log.d(TAG,"curValue:"+curValue);
    }
});

animation.getAnimatedValue()方法是返回動畫的屬性值,默認返回值是Object,但是我們傳入的是int值,所以就可以強轉成int值了,通過打印的log分析：



07-10 05:05:24.945 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:0
07-10 05:05:25.098 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:5
07-10 05:05:25.285 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:24
07-10 05:05:25.325 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:29
07-10 05:05:25.355 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:34
07-10 05:05:25.365 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:36
07-10 05:05:25.385 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:39
07-10 05:05:25.405 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:42
07-10 05:05:25.415 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:44
07-10 05:05:25.435 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:47
07-10 05:05:25.445 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:50
07-10 05:05:25.465 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:52
07-10 05:05:25.475 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:55
07-10 05:05:25.495 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:57
07-10 05:05:25.515 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:60
07-10 05:05:25.525 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:62
07-10 05:05:25.548 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:65
07-10 05:05:25.565 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:67
07-10 05:05:25.582 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:70
07-10 05:05:25.598 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:72
07-10 05:05:25.615 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:74
07-10 05:05:25.627 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:77
07-10 05:05:25.648 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:79
07-10 05:05:25.665 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:81
07-10 05:05:25.676 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:83
07-10 05:05:25.698 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:85
07-10 05:05:25.715 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:87
07-10 05:05:25.732 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:88
07-10 05:05:25.748 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:90
07-10 05:05:25.765 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:91
07-10 05:05:25.777 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:93
07-10 05:05:25.798 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:94
07-10 05:05:25.815 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:95
07-10 05:05:25.825 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:96
07-10 05:05:25.848 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:97
07-10 05:05:25.865 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:98
07-10 05:05:25.882 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:98
07-10 05:05:25.898 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:99
07-10 05:05:25.915 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:99
07-10 05:05:25.927 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:99
07-10 05:05:25.948 1178-1178/com.example.valueanimatordemo D/MainActivity: curValue:100

通過上面的log知道,上面是打印的在1秒時間內所改變的值,從這個log就證明動畫是執行了的,但是並沒有作用於某一個控件上,從這就明顯看出來和Tween動畫的區別,現在就根據這些值做一個平移的動畫,你會發現view類並沒有什麼方法設置可以執行屬性動畫的方法,那我們只能根據view提供的並外一個方法layout動態改變他在父view上的位置了,這個方法大家很熟悉了,

布局文件：



這個imageview顯示的圖片是胡歌的前女友,只能說明星真會玩,玩了就不玩了,





public class MainActivity extends Activity { private static final String TAG = "MainActivity"; private Button btn_start_anim; private ImageView iv_show_grid; private int left,top; private boolean isFirst; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); btn_start_anim = (Button) findViewById(R.id.btn_start_anim); iv_show_grid = (ImageView) findViewById(R.id.iv_show_grid); btn_start_anim.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { execAnimator(); } }); iv_show_grid.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { Toast.makeText(getApplicationContext(),"客官點我",Toast.LENGTH_SHORT).show(); } }); } private int tempValue = 0; public void execAnimator(){ ValueAnimator animator = ValueAnimator.ofInt(0,100); animator.setDuration(1000); animator.start(); animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() { @Override public void onAnimationUpdate(ValueAnimator animation) { int curValue = (int)animation.getAnimatedValue(); left = iv_show_grid.getLeft(); top = iv_show_grid.getTop(); iv_show_grid.layout(left+curValue-tempValue,top+curValue-tempValue,left+iv_show_grid.getWidth()+curValue-tempValue,iv_show_grid.getHeight()+curValue+top-tempValue); tempValue = curValue; } }); } }

效果：



ok,現在發現屬性動畫是不是能解決Tween動畫的交互上的bug,imageview平移後點擊是ok,

上面使用了ValueAnimator類的一個ofInt()方法,上面我們ofInt()方法傳入了0,100表示從0變化到100,別以為ofInt()方法只接受2個參數,其實它是可變參數的,

public static ValueAnimator ofInt(int... values) {
    ValueAnimator anim = new ValueAnimator();
    anim.setIntValues(values);
    return anim;
}

那我們可以利用方法實現類似上下移動的效果,

private int tempValue = 0;
public void execAnimator(){
    ValueAnimator animator = ValueAnimator.ofInt(0,200,200,0,0,200,200,0,0,200,200,0);
    animator.setDuration(1000);
    animator.start();
    animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            int curValue = (int)animation.getAnimatedValue();
            left = iv_show_grid.getLeft();
            top = iv_show_grid.getTop();
            iv_show_grid.layout(left,top+curValue-tempValue,left+iv_show_grid.getWidth(),iv_show_grid.getHeight()+curValue+top-tempValue);
            tempValue = curValue;
        }
    });
}

效果：



是不是感覺設置了動畫的重復方法,其實並沒有,

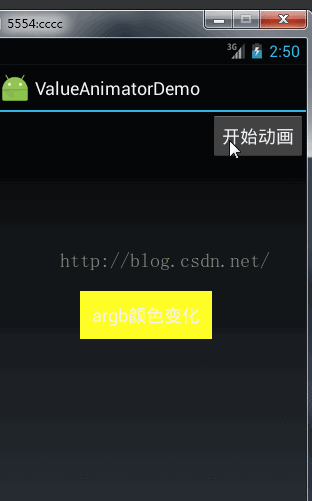

還有一個ofFloat方法其實和ofInt()方法功能是一樣的,只是精度不一樣而已,現在再玩一個方法,就是關於顏色變化的，

public static ValueAnimator ofArgb(int... values) {
    ValueAnimator anim = new ValueAnimator();
    anim.setIntValues(values);
    anim.setEvaluator(ArgbEvaluator.getInstance());
    return anim;
}

突然這個api是要到21才能用,關鍵是我現在最低版本是15,算了不改了,講下另外一個方法,也是很重要的,就是插值器,

public void setInterpolator(TimeInterpolator value) {
    if (value != null) {
        mInterpolator = value;
    } else {
        mInterpolator = new LinearInterpolator();
    }
}

發現我們沒有設置的時候,默認是使用LinearInterpolator,先看下TimeInterpolator這個類,

public interface TimeInterpolator {

    /**
     * Maps a value representing the elapsed fraction of an animation to a value that represents
     * the interpolated fraction. This interpolated value is then multiplied by the change in
     * value of an animation to derive the animated value at the current elapsed animation time.
     *
     * @param input A value between 0 and 1.0 indicating our current point
     *        in the animation where 0 represents the start and 1.0 represents
     *        the end
     * @return The interpolation value. This value can be more than 1.0 for
     *         interpolators which overshoot their targets, or less than 0 for
     *         interpolators that undershoot their targets.
     */
    float getInterpolation(float input);
}

就一個方法getInterpolation()該方法一個形參input,從方法的注釋上看到這個input的取值范圍為[0,1],它有如下子類



我們現在可以自定義一個LinearInterpolator,通過log打印出input的值

class MyLinearInterpolator extends LinearInterpolator{
    @Override
    public float getInterpolation(float input) {
        Log.e(TAG,"input="+input);
        return super.getInterpolation(input);
    }
}

設置插值器

animator.setInterpolator(new MyLinearInterpolator());

log:

07-10 09:12:10.701 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.0
07-10 09:12:10.710 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.0
07-10 09:12:10.730 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.017
07-10 09:12:10.760 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.05
07-10 09:12:10.781 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.067
07-10 09:12:10.792 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.083
07-10 09:12:10.820 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.1
07-10 09:12:10.831 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.117
07-10 09:12:10.851 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.133
07-10 09:12:10.881 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.167
07-10 09:12:10.901 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.183
07-10 09:12:10.921 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.2
07-10 09:12:10.941 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.233
07-10 09:12:10.970 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.25
07-10 09:12:10.981 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.267
07-10 09:12:11.010 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.3
07-10 09:12:11.030 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.317
07-10 09:12:11.050 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.333
07-10 09:12:11.071 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.35
07-10 09:12:11.092 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.367
07-10 09:12:11.111 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.4
07-10 09:12:11.131 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.417
07-10 09:12:11.141 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.433
07-10 09:12:11.160 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.45
07-10 09:12:11.190 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.467
07-10 09:12:11.200 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.483
07-10 09:12:11.220 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.5
07-10 09:12:11.230 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.517
07-10 09:12:11.251 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.533
07-10 09:12:11.260 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.55
07-10 09:12:11.271 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.567
07-10 09:12:11.301 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.583
07-10 09:12:11.310 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.6
07-10 09:12:11.330 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.617
07-10 09:12:11.340 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.633
07-10 09:12:11.370 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.667
07-10 09:12:11.410 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.7
07-10 09:12:11.450 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.733
07-10 09:12:11.480 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.767
07-10 09:12:11.490 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.783
07-10 09:12:11.520 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.8
07-10 09:12:11.531 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.817
07-10 09:12:11.551 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.833
07-10 09:12:11.560 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.85
07-10 09:12:11.580 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.867
07-10 09:12:11.620 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.9
07-10 09:12:11.650 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.933
07-10 09:12:11.690 3672-3672/com.example.valueanimatordemo E/MainActivity: input=0.967
07-10 09:12:11.710 3672-3672/com.example.valueanimatordemo E/MainActivity: input=1.0

通過上面的log也驗證了input的取值范圍是[0,1]

各個插值器的意思如下：



意義如下：

AccelerateDecelerateInterpolator 在動畫開始與結束的地方速率改變比較慢，在中間的時候加速

AccelerateInterpolator 在動畫開始的地方速率改變比較慢，然後開始加速

AnticipateInterpolator 開始的時候向後然後向前甩

AnticipateOvershootInterpolator 開始的時候向後然後向前甩一定值後返回最後的

BounceInterpolator 動畫結束的時候彈起

CycleInterpolator 動畫循環播放特定的次數，速率改變沿著正弦曲線

DecelerateInterpolator 在動畫開始的地方快然後慢

LinearInterpolator 以常量速率改變

OvershootInterpolator 向前甩一定值後再回到原來位置



現在每個插值器都玩下,看看效果：

共同的代碼如下就是設置插值器代碼不同而且

AccelerateDecelerateInterpolator

AccelerateInterpolator

AnticipateInterpolator

AnticipateOvershootInterpolator

BounceInterpolator

CycleInterpolator

DecelerateInterpolator

OvershootInterpolator

LinearInterpolator

現在所有的動畫插值器都演示了一邊,可能有的不夠明顯,現在講ValueAnimator類的

public void setEvaluator(TypeEvaluator value) {} 這個函數接受的形參是TypteEvaluator,

public interface TypeEvaluator {

    /**
     * This function returns the result of linearly interpolating the start and end values, with
     * fraction representing the proportion between the start and end values. The
     * calculation is a simple parametric calculation: result = x0 + t * (x1 - x0),
     * where x0 is startValue, x1 is endValue,
     * and t is fraction.
     *
     * @param fraction   The fraction from the starting to the ending values
     * @param startValue The start value.
     * @param endValue   The end value.
     * @return A linear interpolation between the start and end values, given the
     *         fraction parameter.
     */
    public T evaluate(float fraction, T startValue, T endValue);

}

形參說明



fraction:從開始值startValue到endValue之間的值

startValue:開始值

endValue:結束值

現在看下TypeEvalator的一些實現類

從子類的名字就可以看出假如傳入的是int值,那麼就對應IntEvaluator類,

現在自定義一個IntEvaluator,看看evaluator方法中的三個參數：

/**
 * 設置動畫執行
 */
public void execAnimator(){
    ValueAnimator animator = ValueAnimator.ofInt(0,200);
    animator.setDuration(1000);
    animator.setEvaluator(new MyIntEvaluator());
    animator.start();
    animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            int curValue = (int)animation.getAnimatedValue();
            left = iv_show_grid.getLeft();
            top = iv_show_grid.getTop();
            iv_show_grid.layout(left,top+curValue-tempValue,left+iv_show_grid.getWidth(),iv_show_grid.getHeight()+curValue+top-tempValue);
            tempValue = curValue;
        }
    });
}
class MyIntEvaluator extends IntEvaluator{
    @Override
    public Integer evaluate(float fraction, Integer startValue, Integer endValue) {
        Log.e(TAG,"fraction="+fraction);
        Log.e(TAG,"startValue="+fraction);
        Log.e(TAG,"endValue="+endValue);
        Log.e(TAG,"結果值="+super.evaluate(fraction, startValue, endValue));
        return super.evaluate(fraction, startValue, endValue);
    }
}

log:



07-10 14:06:53.232 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.0
07-10 14:06:53.232 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.0
07-10 14:06:53.242 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.242 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=0
07-10 14:06:53.255 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.0
07-10 14:06:53.255 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.0
07-10 14:06:53.255 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.255 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=0
07-10 14:06:53.272 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=7.1290135E-4
07-10 14:06:53.272 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=7.1290135E-4
07-10 14:06:53.272 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.282 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=0
07-10 14:06:53.305 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.0061558187
07-10 14:06:53.305 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.0061558187
07-10 14:06:53.305 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.305 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=1
07-10 14:06:53.342 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.017309189
07-10 14:06:53.342 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.017309189
07-10 14:06:53.342 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.342 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=3
07-10 14:06:53.362 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.02447176
07-10 14:06:53.362 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.02447176
07-10 14:06:53.372 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.372 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=4
07-10 14:06:53.402 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.043654233
07-10 14:06:53.402 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.043654233
07-10 14:06:53.402 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.412 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=8
07-10 14:06:53.442 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.06724939
07-10 14:06:53.442 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.06724939
07-10 14:06:53.442 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.442 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=13
07-10 14:06:53.462 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.09549156
07-10 14:06:53.462 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.09549156
07-10 14:06:53.482 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.482 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=19
07-10 14:06:53.533 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.16582394
07-10 14:06:53.533 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.16582394
07-10 14:06:53.533 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.533 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=33
07-10 14:06:53.562 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.20610732
07-10 14:06:53.562 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.20610732
07-10 14:06:53.562 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.562 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=41
07-10 14:06:53.602 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.27300477
07-10 14:06:53.602 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.27300477
07-10 14:06:53.612 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.622 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=54
07-10 14:06:53.631 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.32179415
07-10 14:06:53.631 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.32179415
07-10 14:06:53.642 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.642 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=64
07-10 14:06:53.662 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.34549147
07-10 14:06:53.662 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.34549147
07-10 14:06:53.693 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.693 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=69
07-10 14:06:53.772 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.5
07-10 14:06:53.772 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.5
07-10 14:06:53.793 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.802 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=100
07-10 14:06:53.822 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.6044678
07-10 14:06:53.832 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.6044678
07-10 14:06:53.832 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.832 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=120
07-10 14:06:53.862 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.65450853
07-10 14:06:53.862 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.65450853
07-10 14:06:53.862 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.872 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=130
07-10 14:06:53.902 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.7269952
07-10 14:06:53.932 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.7269952
07-10 14:06:53.932 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.932 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=145
07-10 14:06:53.962 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.7938927
07-10 14:06:53.972 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.7938927
07-10 14:06:53.982 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:53.992 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=158
07-10 14:06:54.022 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.8719225
07-10 14:06:54.033 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.8719225
07-10 14:06:54.033 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.033 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=174
07-10 14:06:54.062 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.9045085
07-10 14:06:54.062 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.9045085
07-10 14:06:54.062 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.062 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=180
07-10 14:06:54.072 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.91962016
07-10 14:06:54.082 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.91962016
07-10 14:06:54.082 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.093 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=183
07-10 14:06:54.134 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.9671645
07-10 14:06:54.134 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.9671645
07-10 14:06:54.142 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.142 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=193
07-10 14:06:54.175 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.98309815
07-10 14:06:54.182 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.98309815
07-10 14:06:54.192 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.212 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=196
07-10 14:06:54.222 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.9973154
07-10 14:06:54.222 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.9973154
07-10 14:06:54.232 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.232 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=199
07-10 14:06:54.252 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.9993685
07-10 14:06:54.262 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.9993685
07-10 14:06:54.262 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.272 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=199
07-10 14:06:54.292 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=1.0
07-10 14:06:54.292 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=1.0
07-10 14:06:54.292 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:06:54.322 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=200

從上面的log可以看出,endValue的值是不變的，也就是我們這行代碼傳入的第二個參數：

ValueAnimator animator = ValueAnimator.ofInt(0,200);

startValue的值是從0到1,fraction的值也是從0到1,這二個值其實相等的,只是fraction是float值,startValue值是int值,而結果值的計算公式為：

public Integer evaluate(float fraction, Integer startValue, Integer endValue) {
    int startInt = startValue;
    return (int)(startInt + fraction * (endValue - startInt));
}

這是源碼中已有的,我們就拿log中的一個值來計算



07-10 14:16:04.042 2128-2128/com.example.valueanimatordemo E/MainActivity: fraction=0.11175674
07-10 14:16:04.052 2128-2128/com.example.valueanimatordemo E/MainActivity: startValue=0.11175674
07-10 14:16:04.052 2128-2128/com.example.valueanimatordemo E/MainActivity: endValue=200
07-10 14:16:04.052 2128-2128/com.example.valueanimatordemo E/MainActivity: 結果值=22

0.11175674+0.11175674*(200-0.11175674)=0.11175674*(1+200-0.11175674)=22.450613055062455 但是結果是Integer，所以結果就是22了

在這補充一個知識點：

ValueAnimator animator = ValueAnimator.ofInt(100,200); 這個100是要執行動畫的起始坐標,200是動畫結束時的坐標,這個是以父view的左上角為參考點，

下面我們重寫evaluate()方法的返回值看看結果是什麼樣的：

class MyIntEvaluator extends IntEvaluator{
    @Override
    public Integer evaluate(float fraction, Integer startValue, Integer endValue) {
        int temp=(int)fraction;
        int startInt= startValue;
        return (int)(100+startInt + fraction * (endValue - startInt));
    }
}

效果：



其實這個不看效果,也知道肯定比傳入的200(最終坐標)要大,現在看一個以後會經常使用的一個類就是ArgbEvaluator，

/**
 * 設置動畫執行
 */
public void execAnimator(){
    ValueAnimator animator = ValueAnimator.ofInt(0xffffff00,0xffffff99);
    animator.setEvaluator(new ArgbEvaluator());
    animator.setDuration(5000);

    animator.setEvaluator(new ArgbEvaluator());
    animator.start();
    animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            int curValue = (int)animation.getAnimatedValue();
            btn_argb.setBackgroundColor(curValue);
        }
    });
}

效果：



ValueAnimator類還有一個可以自定義對象的方法就是ofObject()，看源碼：

public static ValueAnimator ofObject(TypeEvaluator evaluator, Object... values) {
    ValueAnimator anim = new ValueAnimator();
    anim.setObjectValues(values);
    anim.setEvaluator(evaluator);
    return anim;
}

參數說明：

evaluator:這個是你自定義的TypeEvaluator

values:是你對這個自定義對象的值的變化

之前的博客記得寫過什麼水波紋類似的效果,其實就是在時間很短的情況下改變圓的半徑實現的,今天也用這個也實現下這個效果

public class CustomView extends View {
    private static final String TAG ="CustomView" ;
    private Paint mPaint;
    private MyPoint myPoint;
    public CustomView(Context context) {
        super(context);
    }

    public CustomView(Context context, AttributeSet attrs) {
        super(context, attrs);
        mPaint = new Paint();
        mPaint.setStrokeWidth(5);
        mPaint.setStyle(Paint.Style.STROKE);
        mPaint.setColor(Color.WHITE);
    }

    public CustomView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        if(myPoint!=null){
            Log.e(TAG,"第一次他的半徑是==="+myPoint.getRaduis());
            canvas.drawCircle(200, 200, myPoint.getRaduis(), mPaint);
        }
    }
    public void execAnimator() {
        ValueAnimator animator = ValueAnimator.ofObject(new RadiusEvaluator(), new MyPoint(10), new MyPoint(200));
        animator.setDuration(100);
        animator.setRepeatCount(10);
        animator.start();
        animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                myPoint = (MyPoint)animation.getAnimatedValue();
                invalidate();
            }
        });
    }
}

自定義半徑類：

public class MyPoint {

    private int raduis;

    public MyPoint(int raduis) {
        this.raduis = raduis;
    }

    public int getRaduis() {
        return raduis;
    }
    public void setRaduis(int raduis) {
        this.raduis = raduis;
    }
}

自定義TypeEaluator

public class RadiusEvaluator implements TypeEvaluator {
    @Override
    public MyPoint evaluate(float fraction, MyPoint startValue, MyPoint endValue) {
        int startRaduis = startValue.getRaduis();
        int endRaduis  = endValue.getRaduis();
        int curValue = (int)(startRaduis + fraction * (endRaduis - startRaduis));
        return new MyPoint(curValue);
    }
}

最後就是按鈕點擊執行動畫了

btn_start_anim.setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View v) {
        customview.execAnimator();
    }
});

效果：



現在我向動畫中添加一個插值器BounceInterpolator,這個表示動畫結束的時候彈起,而且要把動畫時間放長點才好看出來效果：

public void execAnimator() {
    ValueAnimator animator = ValueAnimator.ofObject(new RadiusEvaluator(), new MyPoint(10), new MyPoint(100));
    animator.setDuration(1000);
    animator.setInterpolator(new BounceInterpolator());
    animator.start();
    animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            myPoint = (MyPoint)animation.getAnimatedValue();
            invalidate();
        }
    });
}

效果：



ValueAnimator類基本的使用都講完了,你發現使用ValueAnimator做view平移的時候是用view的layout()方法實現的,而ValueAnimator類並沒有給我們直接提供方法讓我們自己調用,那麼就引人了ObjectAnimator這個類了,
