Android實現網絡多線程斷點續傳下載實例

我們編寫的是Andorid的HTTP協議多線程斷點下載應用程序。直接使用單線程下載HTTP文件對我們來說是一件非常簡單的事。那麼，多線程斷點需要什麼功能？

1.多線程下載，

2.支持斷點。

使用多線程的好處：使用多線程下載會提升文件下載的速度。那麼多線程下載文件的過程是：

(1)首先獲得下載文件的長度，然後設置本地文件的長度。

HttpURLConnection.getContentLength();//獲取下載文件的長度
RandomAccessFile file = new RandomAccessFile("QQWubiSetup.exe","rwd");
file.setLength(filesize);//設置本地文件的長度

(2)根據文件長度和線程數計算每條線程下載的數據長度和下載位置。

如：文件的長度為6M，線程數為3，那麼，每條線程下載的數據長度為2M，每條線程開始下載的位置如下圖所示。

例如10M大小，使用3個線程來下載，
線程下載的數據長度   (10%3 == 0 ？ 10/3:10/3+1) ,第1，2個線程下載長度是4M，第三個線程下載長度為2M
下載開始位置：線程id*每條線程下載的數據長度 = ?
下載結束位置：（線程id+1）*每條線程下載的數據長度-1=?

(3)使用Http的Range頭字段指定每條線程從文件的什麼位置開始下載，下載到什麼位置為止，

如：指定從文件的2M位置開始下載，下載到位置(4M-1byte)為止
代碼如下：HttpURLConnection.setRequestProperty("Range", "bytes=2097152-4194303");

(4)保存文件，使用RandomAccessFile類指定每條線程從本地文件的什麼位置開始寫入數據。
 RandomAccessFile threadfile = new RandomAccessFile("QQWubiSetup.exe ","rwd");
 threadfile.seek(2097152);//從文件的什麼位置開始寫入數據

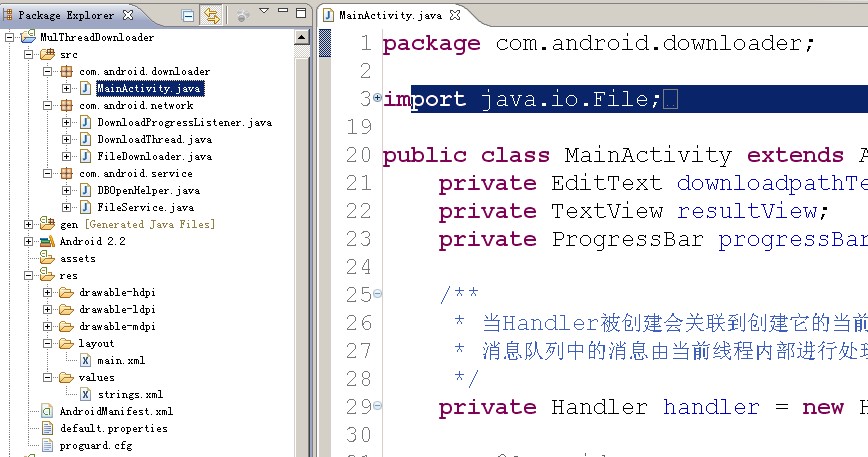

程序結構如下圖所示：

string.xml文件中代碼：

 <?xml version="1.0" encoding="utf-8"?>
<resources>

  <string name="hello">Hello World, MainActivity!</string>

  <string name="app_name">Android網絡多線程斷點下載</string>

  <string name="path">下載路徑</string>

  <string name="downloadbutton">下載</string>

  <string name="sdcarderror">SDCard不存在或者寫保護</string>

  <string name="success">下載完成</string>

  <string name="error">下載失敗</string>

</resources>

 main.xml文件中代碼：

 <?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
  <!-- 下載路徑 -->

  <TextView

    android:layout_width="fill_parent"

    android:layout_height="wrap_content"

    android:text="@string/path"/>

  <EditText

    android:id="@+id/path"

    android:text="http://www.winrar.com.cn/download/wrar380sc.exe"

    android:layout_width="fill_parent"

    android:layout_height="wrap_content">

  </EditText>

  <!-- 下載按鈕 -->

  <Button

    android:layout_width="wrap_content"

    android:layout_height="wrap_content"

    android:text="@string/downloadbutton"

    android:id="@+id/button"/>

  <!-- 進度條 -->

  <ProgressBar

    android:layout_width="fill_parent"

    android:layout_height="20dip"



    android:id="@+id/downloadbar" />

  <TextView

    android:layout_width="fill_parent"

    android:layout_height="wrap_content"

    android:gravity="center"

    android:id="@+id/resultView" />

  </LinearLayout>

AndroidManifest.xml文件中代碼:

 <?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android"   package="com.android.downloader"   android:versionCode="1"   android:versionName="1.0">
  <uses-sdk android:minSdkVersion="8" />

  <application android:icon="@drawable/icon" android:label="@string/app_name">
    <activity android:name=".MainActivity"
         android:label="@string/app_name">
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

  </application>

  <!-- 在SDCard中創建與刪除文件權限 -->
  <uses-permission android:name="android.permission.MOUNT_UNMOUNT_FILESYSTEMS"/>

  <!-- 往SDCard寫入數據權限 -->
  <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>

  <!-- 訪問internet權限 -->
  <uses-permission android:name="android.permission.INTERNET"/>
</manifest>

 MainActivity中代碼：

 package com.android.downloader;
import java.io.File;



import com.android.network.DownloadProgressListener;

import com.android.network.FileDownloader;



import android.app.Activity;

import android.os.Bundle;

import android.os.Environment;

import android.os.Handler;

import android.os.Message;

import android.view.View;

import android.widget.Button;

import android.widget.EditText;

import android.widget.ProgressBar;

import android.widget.TextView;

import android.widget.Toast;



public class MainActivity extends Activity {

  private EditText downloadpathText;

  private TextView resultView;

  private ProgressBar progressBar;



  /**

   * 當Handler被創建會關聯到創建它的當前線程的消息隊列，該類用於往消息隊列發送消息

   * 消息隊列中的消息由當前線程內部進行處理

   */

  private Handler handler = new Handler(){



    @Override

    public void handleMessage(Message msg) {

      switch (msg.what) {

      case 1:

        progressBar.setProgress(msg.getData().getInt("size"));

        float num = (float)progressBar.getProgress()/(float)progressBar.getMax();

        int result = (int)(num*100);

        resultView.setText(result+ "%");



        if(progressBar.getProgress()==progressBar.getMax()){

          Toast.makeText(MainActivity.this, R.string.success, 1).show();

        }

        break;

      case -1:

        Toast.makeText(MainActivity.this, R.string.error, 1).show();

        break;

      }

    }

  };



  /** Called when the activity is first created. */

  @Override

  public void onCreate(Bundle savedInstanceState) {

    super.onCreate(savedInstanceState);

    setContentView(R.layout.main);



    downloadpathText = (EditText) this.findViewById(R.id.path);

    progressBar = (ProgressBar) this.findViewById(R.id.downloadbar);

    resultView = (TextView) this.findViewById(R.id.resultView);

    Button button = (Button) this.findViewById(R.id.button);



    button.setOnClickListener(new View.OnClickListener() {



      @Override

      public void onClick(View v) {

        // TODO Auto-generated method stub

        String path = downloadpathText.getText().toString();

        System.out.println(Environment.getExternalStorageState()+"------"+Environment.MEDIA_MOUNTED);



        if(Environment.getExternalStorageState().equals(Environment.MEDIA_MOUNTED)){

          download(path, Environment.getExternalStorageDirectory());

        }else{

          Toast.makeText(MainActivity.this, R.string.sdcarderror, 1).show();

        }

      }

    });

  }



   /**

    * 主線程(UI線程)

    * 對於顯示控件的界面更新只是由UI線程負責，如果是在非UI線程更新控件的屬性值，更新後的顯示界面不會反映到屏幕上

    * @param path

    * @param savedir

    */

  private void download(final String path, final File savedir) {

    new Thread(new Runnable() {

      @Override

      public void run() {

        FileDownloader loader = new FileDownloader(MainActivity.this, path, savedir, 3);

        progressBar.setMax(loader.getFileSize());//設置進度條的最大刻度為文件的長度



        try {

          loader.download(new DownloadProgressListener() {

            @Override

            public void onDownloadSize(int size) {//實時獲知文件已經下載的數據長度

              Message msg = new Message();

              msg.what = 1;

              msg.getData().putInt("size", size);

              handler.sendMessage(msg);//發送消息

            }

          });

        } catch (Exception e) {

          handler.obtainMessage(-1).sendToTarget();

        }

      }

    }).start();

  }
}

DBOpenHelper中代碼：

package com.android.service;
import android.content.Context;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteOpenHelper;



public class DBOpenHelper extends SQLiteOpenHelper {

  private static final String DBNAME = "down.db";

  private static final int VERSION = 1;



  public DBOpenHelper(Context context) {

    super(context, DBNAME, null, VERSION);

  }



  @Override

  public void onCreate(SQLiteDatabase db) {

    db.execSQL("CREATE TABLE IF NOT EXISTS filedownlog (id integer primary key autoincrement, downpath varchar(100), threadid INTEGER, downlength INTEGER)");

  }



  @Override

  public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

    db.execSQL("DROP TABLE IF EXISTS filedownlog");

    onCreate(db);

  }

}

FileService中代碼：

package com.android.service;
import java.util.HashMap;

import java.util.Map;



import android.content.Context;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;



public class FileService {

  private DBOpenHelper openHelper;



  public FileService(Context context) {

    openHelper = new DBOpenHelper(context);

  }



  /**

   * 獲取每條線程已經下載的文件長度

   * @param path

   * @return

   */

  public Map<Integer, Integer> getData(String path){

    SQLiteDatabase db = openHelper.getReadableDatabase();

    Cursor cursor = db.rawQuery("select threadid, downlength from filedownlog where downpath=?", new String[]{path});

    Map<Integer, Integer> data = new HashMap<Integer, Integer>();



    while(cursor.moveToNext()){

      data.put(cursor.getInt(0), cursor.getInt(1));

    }



    cursor.close();

    db.close();

    return data;

  }



  /**

   * 保存每條線程已經下載的文件長度

   * @param path

   * @param map

   */

  public void save(String path, Map<Integer, Integer> map){//int threadid, int position

    SQLiteDatabase db = openHelper.getWritableDatabase();

    db.beginTransaction();



    try{

      for(Map.Entry<Integer, Integer> entry : map.entrySet()){

        db.execSQL("insert into filedownlog(downpath, threadid, downlength) values(?,?,?)",

            new Object[]{path, entry.getKey(), entry.getValue()});

      }

      db.setTransactionSuccessful();

    }finally{

      db.endTransaction();

    }



    db.close();

  }



  /**

   * 實時更新每條線程已經下載的文件長度

   * @param path

   * @param map

   */

  public void update(String path, Map<Integer, Integer> map){

    SQLiteDatabase db = openHelper.getWritableDatabase();

    db.beginTransaction();



    try{

      for(Map.Entry<Integer, Integer> entry : map.entrySet()){

        db.execSQL("update filedownlog set downlength=? where downpath=? and threadid=?",

            new Object[]{entry.getValue(), path, entry.getKey()});

      }



      db.setTransactionSuccessful();

    }finally{

      db.endTransaction();

    }



    db.close();

  }



  /**

   * 當文件下載完成後，刪除對應的下載記錄

   * @param path

   */

  public void delete(String path){

    SQLiteDatabase db = openHelper.getWritableDatabase();

    db.execSQL("delete from filedownlog where downpath=?", new Object[]{path});

    db.close();

  }
}

DownloadProgressListener中代碼：

package com.android.network;
public interface DownloadProgressListener {
  public void onDownloadSize(int size);
}

FileDownloader中代碼：

package com.android.network;
import java.io.File;

import java.io.RandomAccessFile;

import java.net.HttpURLConnection;

import java.net.URL;

import java.util.LinkedHashMap;

import java.util.Map;

import java.util.UUID;

import java.util.concurrent.ConcurrentHashMap;

import java.util.regex.Matcher;

import java.util.regex.Pattern;
import com.android.service.FileService;
import android.content.Context;
import android.util.Log;
public class FileDownloader {

  private static final String TAG = "FileDownloader";

  private Context context;

  private FileService fileService;

  /* 已下載文件長度 */

  private int downloadSize = 0;

  /* 原始文件長度 */

  private int fileSize = 0;

  /* 線程數 */

  private DownloadThread[] threads;

  /* 本地保存文件 */

  private File saveFile;

  /* 緩存各線程下載的長度*/

  private Map<Integer, Integer> data = new ConcurrentHashMap<Integer, Integer>();


  /* 每條線程下載的長度 */

  private int block;

  /* 下載路徑 */

  private String downloadUrl;

  /**

   * 獲取線程數

   */

  public int getThreadSize() {

    return threads.length;

  }
  /**

   * 獲取文件大小

   * @return

   */

  public int getFileSize() {

    return fileSize;

  }
  /**

   * 累計已下載大小

   * @param size

   */

  protected synchronized void append(int size) {

    downloadSize += size;

  }
  /**

   * 更新指定線程最後下載的位置

   * @param threadId 線程id

   * @param pos 最後下載的位置

   */

  protected synchronized void update(int threadId, int pos) {

    this.data.put(threadId, pos);

    this.fileService.update(this.downloadUrl, this.data);

  }
  /**

   * 構建文件下載器

   * @param downloadUrl 下載路徑

   * @param fileSaveDir 文件保存目錄

   * @param threadNum 下載線程數

   */
  public FileDownloader(Context context, String downloadUrl, File fileSaveDir, int threadNum) {
    try {
      this.context = context;
      this.downloadUrl = downloadUrl;
      fileService = new FileService(this.context);
      URL url = new URL(this.downloadUrl);
      if(!fileSaveDir.exists()) fileSaveDir.mkdirs();
      this.threads = new DownloadThread[threadNum];
      HttpURLConnection conn = (HttpURLConnection) url.openConnection();
      conn.setConnectTimeout(5*1000);
      conn.setRequestMethod("GET");
      conn.setRequestProperty("Accept", "image/gif, image/jpeg, image/pjpeg, image/pjpeg, application/x-shockwave-flash, application/xaml+xml, application/vnd.ms-xpsdocument, application/x-ms-xbap, application/x-ms-application, application/vnd.ms-excel, application/vnd.ms-powerpoint, application/msword, */*");
      conn.setRequestProperty("Accept-Language", "zh-CN");
      conn.setRequestProperty("Referer", downloadUrl);
      conn.setRequestProperty("Charset", "UTF-8");
      conn.setRequestProperty("User-Agent", "Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.2; Trident/4.0; .NET CLR 1.1.4322; .NET CLR 2.0.50727; .NET CLR 3.0.04506.30; .NET CLR 3.0.4506.2152; .NET CLR 3.5.30729)");
      conn.setRequestProperty("Connection", "Keep-Alive");
      conn.connect();
      printResponseHeader(conn);
      if (conn.getResponseCode()==200) {

        this.fileSize = conn.getContentLength();//根據響應獲取文件大小

        if (this.fileSize <= 0) throw new RuntimeException("Unkown file size ");
        String filename = getFileName(conn);//獲取文件名稱
        this.saveFile = new File(fileSaveDir, filename);//構建保存文件
        Map<Integer, Integer> logdata = fileService.getData(downloadUrl);//獲取下載記錄
        if(logdata.size()>0){//如果存在下載記錄

          for(Map.Entry<Integer, Integer> entry : logdata.entrySet())

            data.put(entry.getKey(), entry.getValue());//把各條線程已經下載的數據長度放入data中

        }
        if(this.data.size()==this.threads.length){//下面計算所有線程已經下載的數據長度

          for (int i = 0; i < this.threads.length; i++) {

            this.downloadSize += this.data.get(i+1);

          }
          print("已經下載的長度"+ this.downloadSize);
        }
        //計算每條線程下載的數據長度

        this.block = (this.fileSize % this.threads.length)==0? this.fileSize / this.threads.length : this.fileSize / this.threads.length + 1;

      }else{
        throw new RuntimeException("server no response ");
      }
    } catch (Exception e) {
      print(e.toString());
      throw new RuntimeException("don't connection this url");
    }
  }
  /**

   * 獲取文件名

   * @param conn

   * @return

   */

  private String getFileName(HttpURLConnection conn) {
    String filename = this.downloadUrl.substring(this.downloadUrl.lastIndexOf('/') + 1);
    if(filename==null || "".equals(filename.trim())){//如果獲取不到文件名稱
      for (int i = 0;; i++) {
        String mine = conn.getHeaderField(i);
        if (mine == null) break;
        if("content-disposition".equals(conn.getHeaderFieldKey(i).toLowerCase())){

          Matcher m = Pattern.compile(".*filename=(.*)").matcher(mine.toLowerCase());

          if(m.find()) return m.group(1);

        }

      }
      filename = UUID.randomUUID()+ ".tmp";//默認取一個文件名
    }
    return filename;

  }
  /**

   * 開始下載文件

   * @param listener 監聽下載數量的變化,如果不需要了解實時下載的數量,可以設置為null

   * @return 已下載文件大小

   * @throws Exception

   */
  public int download(DownloadProgressListener listener) throws Exception{
    try {
      RandomAccessFile randOut = new RandomAccessFile(this.saveFile, "rw");

      if(this.fileSize>0) randOut.setLength(this.fileSize);

      randOut.close();

      URL url = new URL(this.downloadUrl);
      if(this.data.size() != this.threads.length){
       this.data.clear();
        for (int i = 0; i < this.threads.length; i++) {

          this.data.put(i+1, 0);//初始化每條線程已經下載的數據長度為0

        }

      }
      for (int i = 0; i < this.threads.length; i++) {//開啟線程進行下載

        int downLength = this.data.get(i+1);



        if(downLength < this.block && this.downloadSize<this.fileSize){//判斷線程是否已經完成下載,否則繼續下載

          this.threads[i] = new DownloadThread(this, url, this.saveFile, this.block, this.data.get(i+1), i+1);

          this.threads[i].setPriority(7);

          this.threads[i].start();

        }else{

          this.threads[i] = null;

        }
      }
      this.fileService.save(this.downloadUrl, this.data);
      boolean notFinish = true;//下載未完成
      while (notFinish) {// 循環判斷所有線程是否完成下載

        Thread.sleep(900);

        notFinish = false;//假定全部線程下載完成



        for (int i = 0; i < this.threads.length; i++){

          if (this.threads[i] != null && !this.threads[i].isFinish()) {//如果發現線程未完成下載

            notFinish = true;//設置標志為下載沒有完成



            if(this.threads[i].getDownLength() == -1){//如果下載失敗,再重新下載

              this.threads[i] = new DownloadThread(this, url, this.saveFile, this.block, this.data.get(i+1), i+1);

              this.threads[i].setPriority(7);

              this.threads[i].start();

            }

          }

        }
        if(listener!=null) listener.onDownloadSize(this.downloadSize);//通知目前已經下載完成的數據長度
      }
      fileService.delete(this.downloadUrl);

    } catch (Exception e) {

      print(e.toString());

      throw new Exception("file download fail");

    }

    return this.downloadSize;

  }
  /**

   * 獲取Http響應頭字段

   * @param http

   * @return

   */

  public static Map<String, String> getHttpResponseHeader(HttpURLConnection http) {

    Map<String, String> header = new LinkedHashMap<String, String>();



    for (int i = 0;; i++) {

      String mine = http.getHeaderField(i);

      if (mine == null) break;

      header.put(http.getHeaderFieldKey(i), mine);

    }



    return header;

  }
  /**

   * 打印Http頭字段

   * @param http

   */

  public static void printResponseHeader(HttpURLConnection http){

    Map<String, String> header = getHttpResponseHeader(http);



    for(Map.Entry<String, String> entry : header.entrySet()){

      String key = entry.getKey()!=null ? entry.getKey()+ ":" : "";

      print(key+ entry.getValue());

    }

  }



  private static void print(String msg){

    Log.i(TAG, msg);

  }

}

DownloadThread 中代碼：

package com.android.network;import java.io.File;
import java.io.InputStream;
import java.io.RandomAccessFile;
import java.net.HttpURLConnection;
import java.net.URL;
import android.util.Log;
public class DownloadThread extends Thread {
  private static final String TAG = "DownloadThread";
  private File saveFile;
  private URL downUrl;
  private int block;

  /* 下載開始位置 */
  private int threadId = -1;
  private int downLength;
  private boolean finish = false;
  private FileDownloader downloader;

  public DownloadThread(FileDownloader downloader, URL downUrl, File saveFile, int block, int downLength, int threadId) {
    this.downUrl = downUrl;
    this.saveFile = saveFile;
    this.block = block;
    this.downloader = downloader;
    this.threadId = threadId;
    this.downLength = downLength;
  }

  @Override
  public void run() {
    if(downLength < block){//未下載完成
      try {
        HttpURLConnection http = (HttpURLConnection) downUrl.openConnection();
        http.setConnectTimeout(5 * 1000);
        http.setRequestMethod("GET");
        http.setRequestProperty("Accept", "image/gif, image/jpeg, image/pjpeg, image/pjpeg, application/x-shockwave-flash, application/xaml+xml, application/vnd.ms-xpsdocument, application/x-ms-xbap, application/x-ms-application, application/vnd.ms-excel, application/vnd.ms-powerpoint, application/msword, */*");
        http.setRequestProperty("Accept-Language", "zh-CN");
        http.setRequestProperty("Referer", downUrl.toString());
        http.setRequestProperty("Charset", "UTF-8");
        int startPos = block * (threadId - 1) + downLength;//開始位置
        int endPos = block * threadId -1;//結束位置
        http.setRequestProperty("Range", "bytes=" + startPos + "-"+ endPos);//設置獲取實體數據的范圍
        http.setRequestProperty("User-Agent", "Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.2; Trident/4.0; .NET CLR 1.1.4322; .NET CLR 2.0.50727; .NET CLR 3.0.04506.30; .NET CLR 3.0.4506.2152; .NET CLR 3.5.30729)");
        http.setRequestProperty("Connection", "Keep-Alive");

        InputStream inStream = http.getInputStream();
        byte[] buffer = new byte[1024];
        int offset = 0;
        print("Thread " + this.threadId + " start download from position "+ startPos);
        RandomAccessFile threadfile = new RandomAccessFile(this.saveFile, "rwd");
        threadfile.seek(startPos);

        while ((offset = inStream.read(buffer, 0, 1024)) != -1) {
          threadfile.write(buffer, 0, offset);
          downLength += offset;
          downloader.update(this.threadId, downLength);
          downloader.append(offset);
        }

        threadfile.close();
        inStream.close();
        print("Thread " + this.threadId + " download finish");
        this.finish = true;
      } catch (Exception e) {
        this.downLength = -1;
        print("Thread "+ this.threadId+ ":"+ e);
      }
    }
  }
  private static void print(String msg){
    Log.i(TAG, msg);
  }

  /**
   * 下載是否完成
   * @return
   */
  public boolean isFinish() {
    return finish;
  }

  /**
   * 已經下載的內容大小
   * @return 如果返回值為-1,代表下載失敗
   */
  public long getDownLength() {
    return downLength;
  }}

運行效果如下：
