第81章、Handle-Message-Looper消息機制之二（從零開始學Android）

本章著重通過一個網絡通信應用再次了解一下Handle、Message、Looper實際用法。



一、設計界面

1、布局文件

打開res/layout/activity_main.xml文件。
輸入以下代碼：

[html] view plain copy

1. <?xml version="1.0" encoding="utf-8"?>
2. <LinearLayout
3.     xmlns:android="http://schemas.android.com/apk/res/android"
4.     android:layout_width="match_parent"
5.     android:layout_height="match_parent"
6.     android:orientation="vertical" >
7.
8.     <TextView
9.         android:id="@+id/tvmsg"
10.         android:layout_width="wrap_content"
11.         android:layout_height="wrap_content"
12.         android:text="" />
13.
14. </LinearLayout>



二、程序文件

打開“src/com.genwoxue.hml/MainActivity.java”文件。
然後輸入以下代碼：

[java] view plain copy

1. package com.genwoxue.hml;
2.
3. import java.io.ByteArrayOutputStream;
4. import java.io.InputStream;
5.
6. import org.apache.http.HttpEntity;
7. import org.apache.http.HttpResponse;
8. import org.apache.http.client.HttpClient;
9. import org.apache.http.client.methods.HttpGet;
10. import org.apache.http.impl.client.DefaultHttpClient;
11. import android.app.Activity;
12. import android.app.ProgressDialog;
13. import android.content.DialogInterface;
14. import android.os.Bundle;
15. import android.os.Handler;
16. import android.os.Looper;
17. import android.os.Message;
18. import android.util.Log;
19. import android.widget.TextView;
20.
21. public class MainActivity extends Activity{
22.
23.         private String TAG = "HandlerTest";
24.         private ReceiveMessageThread receiveMessageThread =null;
25.         private EventHandler mHandler = null;
26.         private TextView tv = null;
27.         ProgressDialog pdialog;
28.
29.         @Override
30.         public void onCreate(Bundle savedInstanceState) {
31.
32.             super.onCreate(savedInstanceState);
33.             setContentView(R.layout.activity_main);
34.             tv = (TextView)super.findViewById(R.id.tvmsg);
35.
36.             //創建對話框
37.             pdialog = new ProgressDialog(this);
38.             //設置對話框取消按鈕
39.             pdialog.setButton("cancel", new DialogInterface.OnClickListener() {
40.                 public void onClick(DialogInterface dialog, int i) {
41.                     dialog.cancel();
42.                 }
43.             });
44.
45.             //對話對話框取消事件
46.             pdialog.setOnCancelListener(new DialogInterface.OnCancelListener() {
47.                 public void onCancel(DialogInterface dialog) {
48.                     finish();
49.                 }
50.             });
51.
52.             //初始化對話框
53.             pdialog.setCancelable(true);
54.             pdialog.setMax(100);
55.             pdialog.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
56.             pdialog.show();
57.
58.             tv.setText("正在下載中……");
59.
60.             //啟動線程
61.             receiveMessageThread = new ReceiveMessageThread();
62.             receiveMessageThread.start();
63.
64.         }
65.
66.
67.         //消息處理
68.         class EventHandler extends Handler{
69.             public EventHandler(Looper looper){
70.                 super(looper);
71.             }
72.
73.             public EventHandler(){
74.                 super();
75.             }
76.             @Override
77.             public void handleMessage(Message msg) {
78.                 super.handleMessage(msg);
79.                 switch(msg.what){
80.                 case 1:     //消息為1傳遞進度
81.                     int pos=Integer.valueOf((String)msg.obj);
82.                     tv.setText((String)msg.obj);
83.                     pdialog.setProgress(pos);
84.                     break;
85.                 case 2:    //消息為2，顯示結果
86.                     tv.setText((String)msg.obj);
87.                     pdialog.dismiss();
88.                     break;
89.                 default:
90.                     Log.e(TAG,(String)msg.obj);
91.                     break;
92.                 }
93.             }
94.         }
95.
96.         //創建子線程，下載網頁文件
97.         class ReceiveMessageThread extends Thread {
98.
99.             @Override
100.             public void run(){
101.                 Looper.prepare();
102.                   System.out.println("thread is start!");
103.
104.                     String result = null;
105.                     try{
106.                         HttpClient client = new DefaultHttpClient();
107.                         HttpGet get = new HttpGet("http://www.genwoxue.com");
108.                         HttpResponse response = client.execute(get);
109.                         HttpEntity entity = response.getEntity();
110.                         long length = entity.getContentLength();
111.                         InputStream is = entity.getContent();
112.                         System.out.print(length);
113.                         if(is != null) {
114.                             ByteArrayOutputStream baos = new ByteArrayOutputStream();
115.                             byte[] buf = new byte[128];
116.                             int ch = -1;
117.                             int count = 0;
118.                             int percent=0;
119.                             while((ch = is.read(buf)) != -1) {
120.                                 baos.write(buf, 0, ch);
121.
122.                                 count += ch;
123.                                 if(length > 0) {
124.
125.                                     percent=(int) ((count / (float) length) * 100);
126.
127.                                     Looper looper = Looper.getMainLooper();
128.                                     mHandler = new EventHandler(looper);
129.                                     mHandler.removeMessages(1);
130.                                     Message msg =new Message();
131.                                     if(percent<100){
132.                                         msg.what=1;
133.                                         msg.obj= String.valueOf(percent);
134.                                     }
135.                                     else{
136.                                         result = new String(baos.toByteArray());
137.                                         msg.what=2;
138.                                         msg.obj= String.valueOf(result);
139.                                     }
140.
141.                                      // 將Message對象送入到main thread的MessageQueue裡面
142.                                      MainActivity.this.mHandler.sendMessage(msg);
143.
144.                                     }
145.                                     Thread.sleep(50);    // 讓線程休眠50ms
146.                                 }
147.
148.                         }
149.                     } catch(Exception e) {
150.                         e.printStackTrace();
151.                     }
152.
153.                  Looper.loop();
154.             }
155.         }
156.
157. }



三、配置文件

打開“AndroidManifest.xml”文件。

然後輸入以下代碼：

[html] view plain copy

1. <?xml version="1.0" encoding="utf-8"?>
2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
3.     package="com.genwoxue.hml"
4.     android:versionCode="1"
5.     android:versionName="1.0" >
6.
7.     <uses-sdk
8.         android:minSdkVersion="10"
9.         android:targetSdkVersion="15" />
10.
11.     <uses-permission android:name="android.permission.INTERNET"/>
12.
13.     <application
14.         android:allowBackup="true"
15.         android:icon="@drawable/ic_launcher"
16.         android:label="@string/app_name"
17.         android:theme="@style/AppTheme" >
18.         <activity
19.             android:name="com.genwoxue.hml.MainActivity"
20.             android:label="@string/app_name" >
21.             <intent-filter>
22.                 <action android:name="android.intent.action.MAIN" />
23.                 <category android:name="android.intent.category.LAUNCHER" />
24.             </intent-filter>
25.         </activity>
26.     </application>
27.
28. </manifest>



注意：由於要訪問互聯網，需要在AndroidManifest.xml文件中添加權限：

<uses-permission android:name="android.permission.INTERNET"/>

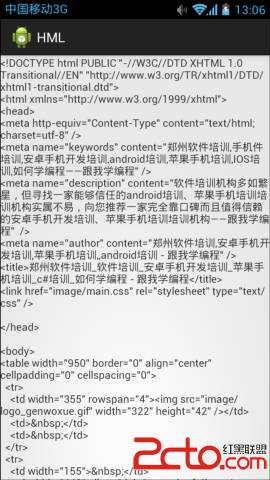

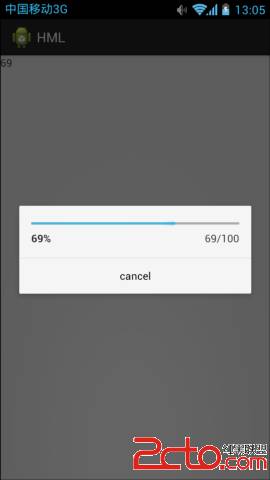

四、運行結果
