android SoundRecorder (錄音機)添加錄音列表菜單項

在錄音機中添加一個錄音列表項，點擊後用戶可以看到已經存在的錄音文件。

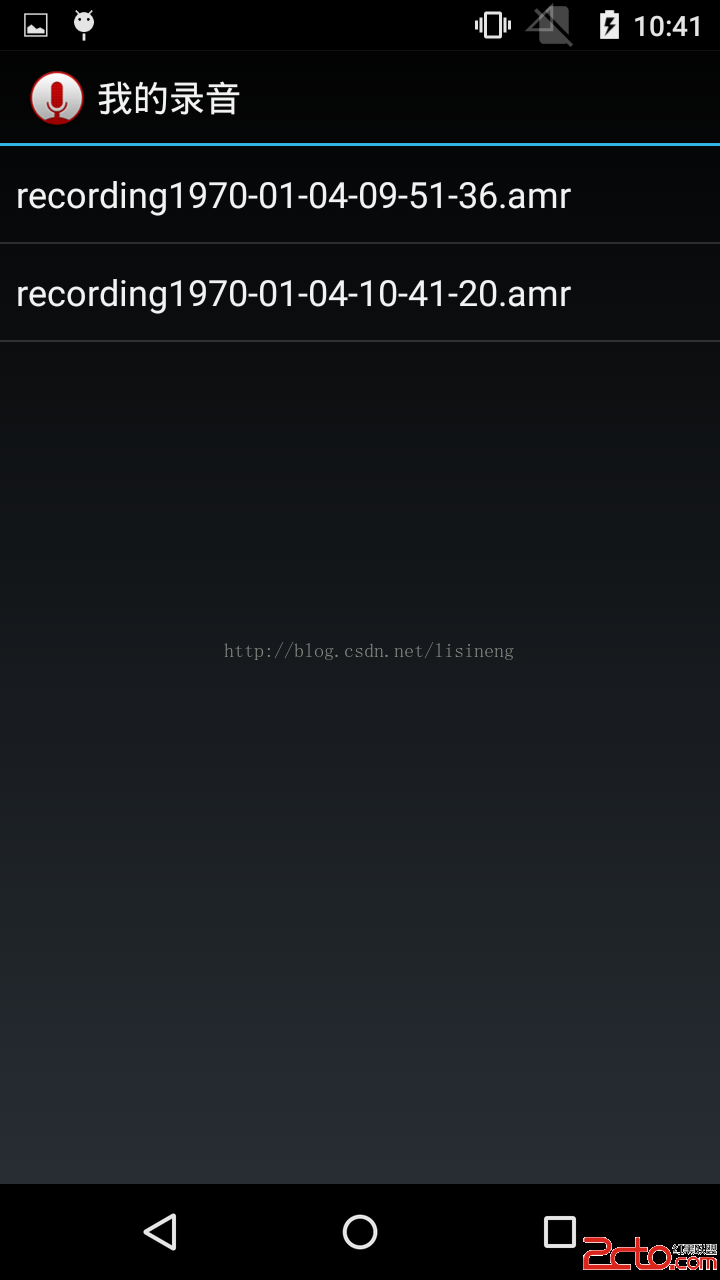

效果圖如下：





修改代碼參照如下：



最初的錄音機是沒有錄音列表選項的，所以我們要加上去。

SoundRecorder esmenumain_menu.xml添加錄音菜單選項







android:id=@+id/menu_item_filetype

android:title=@string/format_setting/>

android:id=@+id/menu_item_storage

android:title=@string/storage_setting/>

android:id=@+id/menu_item_keyboard

android:title=@string/keyboard/>

android:id=@+id/menu_item_list

android:title=@string/audio_db_playlist_name/>







SoundRecordersrccomandroidsoundrecorderSoundRecorder.java 添加對菜單項的響應



public static final String SOUNDRECORDER_PLAYLIST = My recordings;



public boolean onOptionsItemSelected(MenuItem item) {

// TODO Auto-generated method stub

switch (item.getItemId()) {

case R.id.menu_item_keyboard:

if(mRecorder.state() == Recorder.IDLE_STATE) {

InputMethodManager inputMgr =

(InputMethodManager)getSystemService(Context.INPUT_METHOD_SERVICE);

inputMgr.toggleSoftInput(0, 0);

}

break;

case R.id.menu_item_filetype:

if(mRecorder.state() == Recorder.IDLE_STATE) {

openOptionDialog(SETTING_TYPE_FILE_TYPE);

}

break;

case R.id.menu_item_storage:

if(mRecorder.state() == Recorder.IDLE_STATE) {

openOptionDialog(SETTING_TYPE_STORAGE_LOCATION);

}

break;

case R.id.menu_item_list:

Intent intent = new Intent(this, RecordingList.class);

startActivity(intent);

}

return super.onOptionsItemSelected(item);

}





/SoundRecorder/src/com/android/soundrecorder/RecordingList.java添加展示列表的activity



package com.android.soundrecorder;



import android.app.ListActivity;

import android.content.ContentResolver;

import android.content.Context;

import android.content.ContentUris;

import android.content.ContentValues;

import android.content.Intent;

import android.database.Cursor;

import android.net.Uri;

import android.os.Bundle;

import android.util.Log;

import android.widget.CursorAdapter;

import android.widget.SimpleCursorAdapter;

import android.widget.TextView;

import android.widget.Toast;

import android.content.res.Resources;

import android.provider.MediaStore;

import android.view.View;

import android.widget.ListView;

import android.view.ContextMenu;

import android.view.ContextMenu.ContextMenuInfo;

import android.widget.AdapterView.AdapterContextMenuInfo;

import android.view.LayoutInflater;

import android.view.Menu;

import android.view.MenuItem;

import java.io.File;

import android.content.DialogInterface;

import android.content.DialogInterface.OnCancelListener;

import android.content.DialogInterface.OnClickListener;

import android.app.Dialog;

import android.app.AlertDialog;

import android.widget.EditText;

import android.text.InputFilter;



public class RecordingList extends ListActivity {

static final String TAG = RecordingList;



private static final int MAX_FILE_NAME_LENGTH = 80;



private ListView mTrackList;



private static final int MENU_RENAME = 0;

private static final int MENU_DELETE = 1;



private static final int DIALOG_DELETE = 0;



private String mCurrentRecordingTitle;

private long mSelectedId;

private String mSelectedName;

private SimpleCursorAdapter mAdapter;



@Override

public void onCreate(Bundle icicle) {

super.onCreate(icicle);

init();

mTrackList = getListView();

mTrackList.setOnCreateContextMenuListener(this);



if (icicle != null) {

onRestoreInstanceState(icicle);

}

}



@Override

protected void onSaveInstanceState(Bundle out) {

super.onSaveInstanceState(out);

out.putString(mSelectedName, mSelectedName);

out.putLong(mSelectedId, mSelectedId);

}



protected void onRestoreInstanceState(Bundle in) {

mSelectedName = in.getString(mSelectedName);

mSelectedId = in.getLong(mSelectedId);

}



public void init() {



setContentView(R.layout.recording_list);

makeCursor();

updateRecordingList(mCursor);//add by xiaoya 2014/06/17 for [bugId:VK85000000165]

setTitle(R.string.audio_db_playlist_name);



mAdapter = new SimpleCursorAdapter(this,

android.R.layout.simple_list_item_1, mCursor,

new String[] { MediaStore.Video.Media.DISPLAY_NAME },

new int[] { android.R.id.text1 });



setListAdapter(mAdapter);

}



/**

* add by xiaoya 2014/06/17 for [bugId:VK85000000165]

* @param cursor

*/

private void updateRecordingList(Cursor cursor) {

if (null != cursor) {

cursor.moveToFirst();

while (cursor.moveToNext()) {

mSelectedName = cursor.getString(cursor

.getColumnIndexOrThrow(MediaStore.Audio.Media.DATA));

mSelectedId = cursor.getLong(cursor

.getColumnIndexOrThrow(MediaStore.Audio.Playlists.Members.AUDIO_ID));

try {

File f=new File(mSelectedName);

if (!f.exists()) {

delete();

}

} catch (Exception e) {

return;

}

}

}

}



@Override

protected void onListItemClick(ListView l, View v, int position, long id) {

Intent intent = new Intent(Intent.ACTION_VIEW);

mCursor.moveToPosition(position);

String type = mCursor.getString(mCursor

.getColumnIndexOrThrow(MediaStore.Video.Media.MIME_TYPE));

mSelectedName = mCursor.getString(mCursor

.getColumnIndexOrThrow(MediaStore.Audio.Media.DATA));

//add by xiaoya 2014/06/11 for [bugId:VK85000000165] begin

try {

File f=new File(mSelectedName);

if (!f.exists()) {

Toast.makeText(v.getContext(), This file has been removed!, Toast.LENGTH_LONG).show();

return;

}

} catch (Exception e) {

return;

}

//add by xiaoya 2014/06/11 for [bugId:VK85000000165] end

intent.setDataAndType(Uri.fromFile(new File(mSelectedName)), type);



startActivity(intent);

}



@Override

public void onCreateContextMenu(ContextMenu menu, View view,

ContextMenuInfo menuInfoIn) {

menu.add(0, MENU_DELETE, 0, R.string.menu_delete);

AdapterContextMenuInfo mi = (AdapterContextMenuInfo) menuInfoIn;

mCursor.moveToPosition(mi.position);

try {

mCurrentRecordingTitle = mCursor.getString(mCursor

.getColumnIndexOrThrow(MediaStore.Audio.Media.TITLE));

mSelectedName = mCursor.getString(mCursor

.getColumnIndexOrThrow(MediaStore.Audio.Media.DATA));

int id_idx = mCursor

.getColumnIndexOrThrow(MediaStore.Audio.Playlists.Members.AUDIO_ID);

mSelectedId = mCursor.getLong(id_idx);

} catch (IllegalArgumentException ex) {

mSelectedId = mi.id;

}

menu.setHeaderTitle(mCurrentRecordingTitle);

}



@Override

public boolean onContextItemSelected(MenuItem item) {

switch (item.getItemId()) {

case MENU_DELETE: {

showDialog(DIALOG_DELETE);

return true;

}

}

return super.onContextItemSelected(item);

}



@Override

protected Dialog onCreateDialog(int id) {

switch (id) {

case DIALOG_DELETE: {

return new AlertDialog.Builder(this)

.setTitle(getString(R.string.really_delete))

.setIcon(android.R.drawable.ic_dialog_alert)

.setPositiveButton(android.R.string.ok,

new OnClickListener() {

public void onClick(DialogInterface dialog,

int which) {

delete();

}

}).setNegativeButton(android.R.string.cancel, null)

.create();

}

}

return null;

}



private void delete() {

StringBuilder where = new StringBuilder();

where.append(MediaStore.Audio.Media._ID + IN ();

where.append(mSelectedId);

where.append());

getContentResolver().delete(

MediaStore.Audio.Media.EXTERNAL_CONTENT_URI, where.toString(),

null);

File f = new File(mSelectedName);

Log.e(TAG, delete file + mSelectedName + , mSelectedId:

+ mSelectedId);

if (!f.delete()) {

Log.e(TAG, Failed to delete file + mSelectedName);

}

}



private void makeCursor() {

String[] cols = new String[] { MediaStore.Audio.Playlists.Members._ID,

MediaStore.Audio.Media.TITLE, MediaStore.Audio.Media.DATA,

MediaStore.Audio.Media.DISPLAY_NAME,

MediaStore.Audio.Playlists.Members.AUDIO_ID,

MediaStore.Audio.Media.MIME_TYPE, };

if (mCursor != null) {

mCursor.close();

mCursor = null;

}

ContentResolver resolver = getContentResolver();



if (resolver == null) {

Log.e(TAG, resolver = null);

} else if (-1 == getPlaylistId()) {

Log.e(TAG, invalid playlist id: -1);

} else {

Uri uri = MediaStore.Audio.Playlists.Members.getContentUri(

external, Long.valueOf(getPlaylistId()));



mCursor = resolver.query(uri, cols, null, null, mSortOrder);

}

}



private int getPlaylistId() {

Resources res = getResources();

Uri uri = MediaStore.Audio.Playlists.getContentUri(external);

final String[] ids = new String[] { MediaStore.Audio.Playlists._ID };

final String where = MediaStore.Audio.Playlists.NAME + =?;

final String[] args = new String[] {

//SoundRecorder.SOUNDRECORDER_PLAYLIST

My recordings

};

Cursor cursor = getContentResolver().query(uri, ids, where, args, null);

if (cursor == null) {

Log.v(TAG, query returns null);

}

int id = -1;

if (cursor != null) {

cursor.moveToFirst();

if (!cursor.isAfterLast()) {

id = cursor.getInt(0);

}

cursor.close();

}

return id;

}



@Override

public void onDestroy() {

if (mCursor != null) {

mCursor.close();

mCursor = null;

}

super.onDestroy();

}



private Cursor mCursor;

private String mWhereClause;

private String mSortOrder;

}
